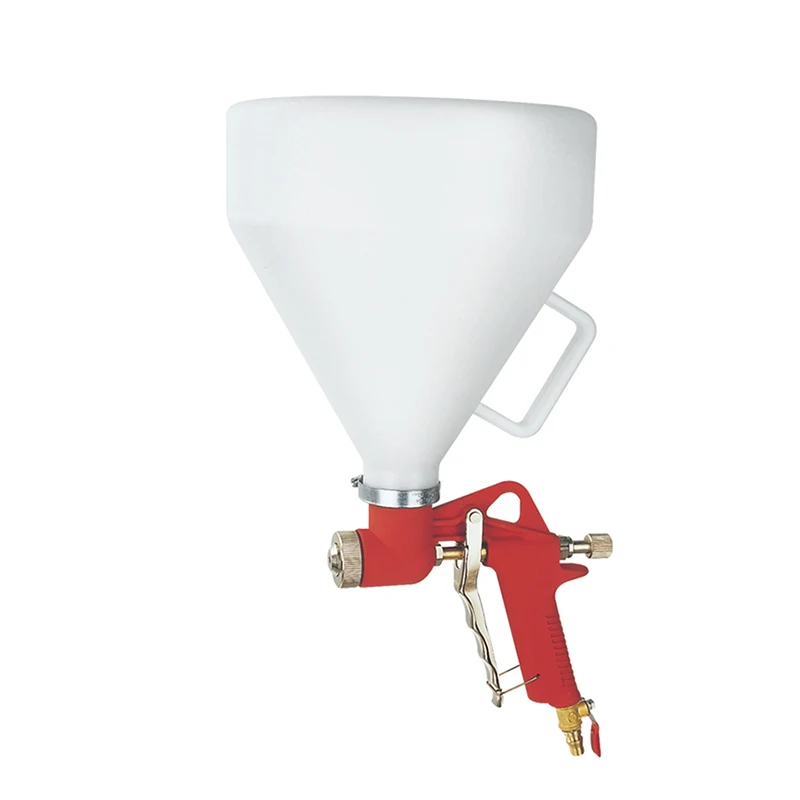

The FR301 pneumatic texture spray gun is a lightweight hopper spraying tool specially built for wall decoration projects. Equipped with a detachable 4500cc plastic hopper and 3 interchangeable nozzle tips (4mm,6mm,8mm), this air hopper gun can spray high viscosity materials including putty, stucco, texture coatings and cement mortar. The plastic hopper is easy to clean after work, helping users cut down maintenance time on construction sites.

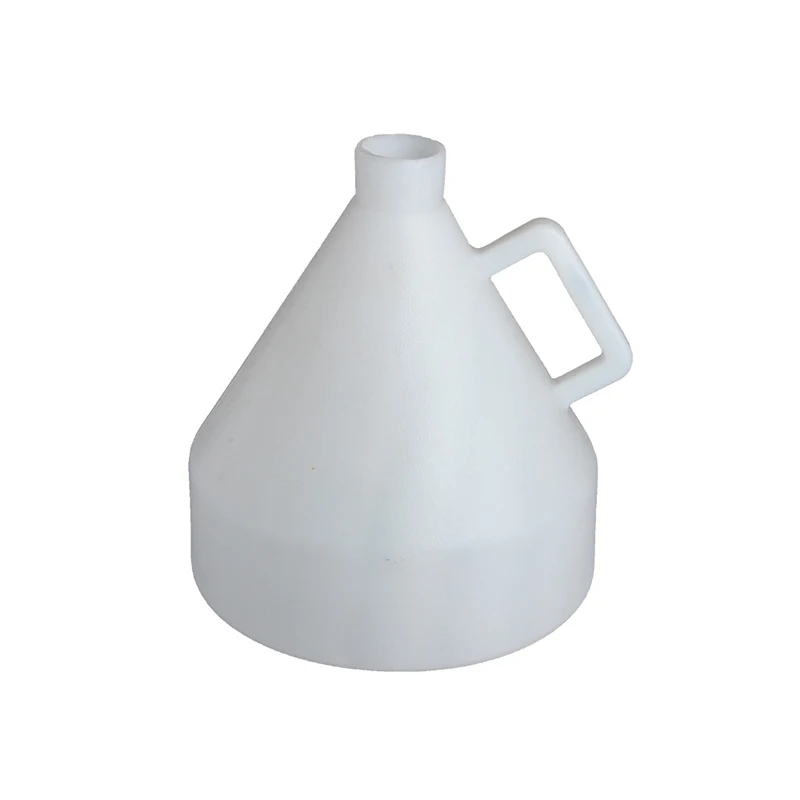

Detachable Large Plastic Hopper (4500cc)
Transparent plastic hopper with handle design, easy to observe the remaining material volume directly. Simple disassembly for thorough rinsing, prevents material curing and blockage.
Three Replaceable Nozzle Tips
Comes with 4.0/6.0/8.0mm metal nozzles to match different material thickness. Fine nozzle for thin putty, large nozzle for coarse mortar and heavy texture coating.
Ergonomic Red Gun Handle
Optimized trigger and grip design, reduces hand strain during long continuous spraying work. The airflow adjustment knob allows flexible control of spray output.
Wide Compatibility for Air Compressor
Standard G1/4 inch air inlet. Works smoothly with air compressor within matched air consumption range, suitable for job-site pneumatic systems.
Product Overview

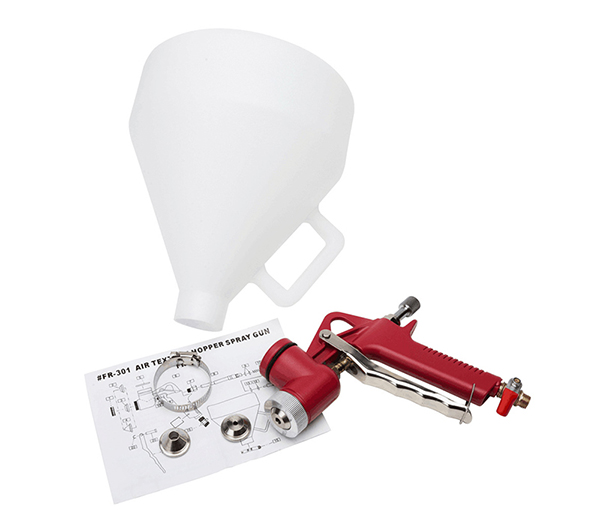

FR301 air texture hopper spray gun is a popular entry-to-medium grade pneumatic sprayer for decorative wall texture jobs. Different from metal hopper models, it adopts a plastic material hopper, which is lighter and simpler to wash. It is widely used by painters, renovation crews and small contractors for interior & exterior wall stucco, texture coating and putty spraying. The package includes spray gun body, plastic hopper, 3pcs nozzles and installation manual for immediate use.
Why Choose the FR301 Texture Sprayer?
| Benefit | Description |
| See Through Plastic Reservoir | 4500cc transparent tank, lightweight build, real time material level visibility for onsite operators |
| Triple Set Swap Ready Metal Tips Hopper | 4/6/8 mm tip assortment supports materials ranging from smooth putty to coarse textured stucco mixes |
| Rapid Disassembly Construction | Hopper and gun head separate with ease, drastically cutting post work cleaning labour |
| Tunable Air Supply Regulator | Precise airflow tuning delivers consistent texture patterns across walls and ceiling substrates |
| Low Burden Light Weight Build | Minimizes wrist strain during hours long continuous overhead spraying assignments |
| Complete Out of Box Kit | Full set of nozzles plus instruction manual enclosed within each retail package |
Specification
| Item | Specification |
| Product Name | Pneumatic Drywall Texture Hopper Sprayer |
| Model | FR301 |
| Feed Type | Gravity Feed |
| Fluid Nozzle Sizes | 4 mm / 6 mm / 8 mm (interchangeable metal tips) |
| Hopper Volume | 4500 cc |
| Hopper Material | Translucent Engineering Plastic |
| Gun Body Material | Cast Aluminum Alloy |
| Suggested Operating Pressure | 4.0-8.0 Bar (60-115 PSI) |
| Air Demand | 8.0-14.0 CFM |
| Air Inlet Thread | 1/4 inch (G1/4″) |
| Main Application | Drywall finishing, wall putty spraying, stucco texture, residential building renovation |
| Highlight Features | Transparent plastic hopper, three replaceable metal tips, easy clean disassembly |
| Carton Spec (6 units per carton) | 71 × 49 × 29.5 cm |
Application Scenarios
● Exterior building putty and texture coating
● Ceiling decorative texture finishing
● Residential renovation and small construction projects
● Painting teams, decorators and DIY renovation works
Frequently Asked Questions
What materials can the FR301 spray gun apply?
This hopper spray gun is designed for wall putty, stucco, texture paint and thin cement mortar. Not recommended for large aggregate heavy concrete.
What is the capacity of the plastic hopper?
The hopper volume is 4500cc. The transparent plastic design allows you to check the material level conveniently.
What working pressure should I use?
Suggested operating pressure: 4.0–8.0 bar (60–115 psi). Adjust pressure according to material viscosity for better spraying effect.
Is the hopper easy to clean?
Yes. The plastic hopper can be detached quickly. Flush it with water immediately after finishing work to avoid material solidification.
What nozzles are included in the set?
3 metal nozzle tips: 4.0mm,6.0mm and 8.0mm. Choose proper nozzle size based on your material thickness.
