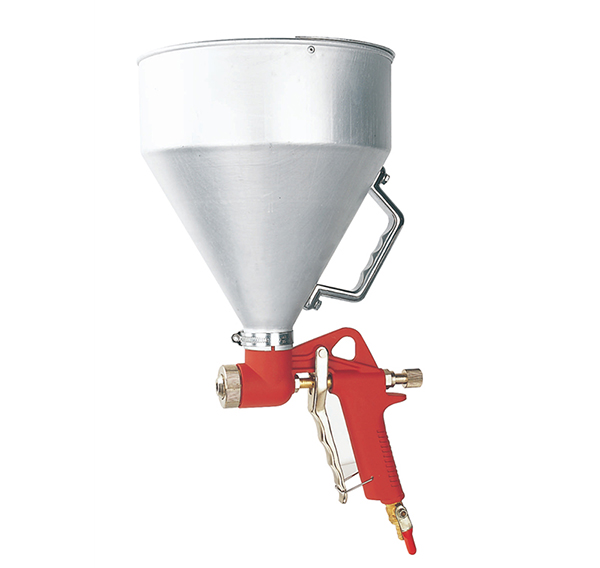

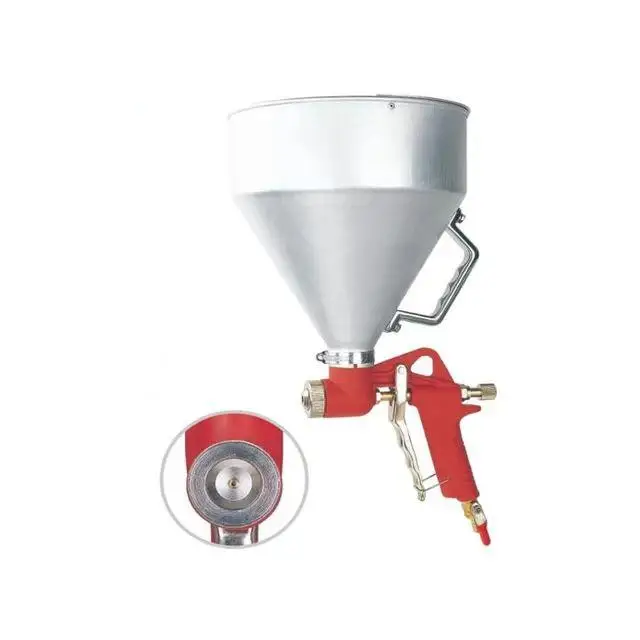

The FR300 is a professional gravity feed hopper spray gun designed for texture coating, cement, putty, wall texture finishing and building decoration. Equipped with a large capacity 6000ml gravity hopper, durable cast aluminum gun body and interchangeable 4/6/8 mm fluid nozzles, it delivers stable spray output for construction renovation projects.

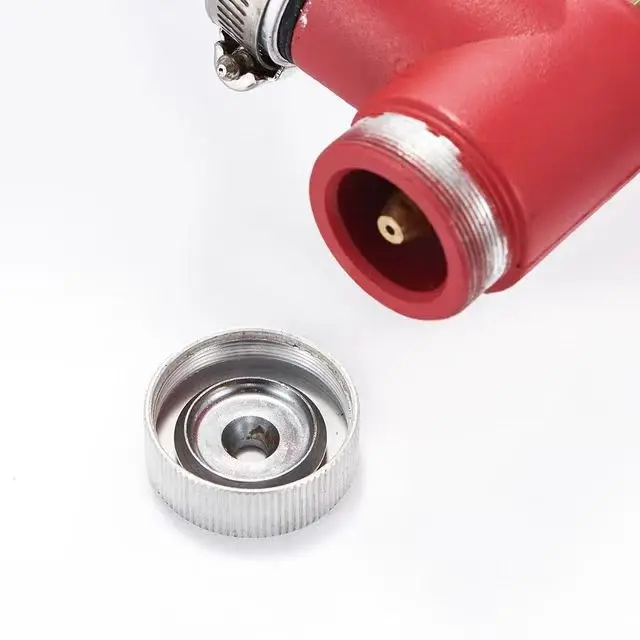

Interchangeable Fluid Nozzles (4/6/8 mm)
Multiple size replaceable nozzles to adapt for different texture materials, from fine putty to coarse cement mortar.
Gravity Feed Large Hopper
6000 ml large volume aluminum hopper, reduces frequent refilling for continuous wall spraying work.
Heavy Duty Aluminum Gun Body
Robust cast aluminum construction for heavy duty construction site working conditions.
Adjustable Spray Pattern & Trigger Stop
Tunable fan width and trigger stop setting for consistent texture effect on ceilings and vertical walls.
Product Overview
The FR300 texture hopper spray gun is a dedicated construction spray tool for interior exterior wall texture, cement mortar, putty, decorative texture coating. Its gravity feed large capacity aluminum hopper, three interchangeable nozzles and sturdy aluminum build make it ideal for decorators, construction teams and renovation contractors.
Why Choose the FR300 Texture Spray Gun?
| Benefit | Description |
| Multi Size Interchangeable Nozzles | 4/6/8 mm nozzles for fine to coarse texture materials |
| Large Volume 6000 ml Hopper | Minimize refill interruptions for large area wall jobs |
| Gravity Feed Feeding System | Reliable material delivery for high viscosity putty & mortar |
| Adjustable Spray Fan & Trigger Stop | Reproducible texture finish for walls and ceilings |
| Heavy Duty Aluminum Body | Resists wear on construction job sites |
| Comfort Extended Trigger | Reduces operator fatigue during long time spraying |
Specification
| Item | Specification |
| Product Name | Texture Hopper Spray Gun |
| Model | FR300 |
| Feed Type | Gravity Feed |
| Fluid Nozzle Sizes | 4 mm / 6 mm / 8 mm (interchangeable) |
| Hopper Capacity | 6000 ml |
| Hopper Material | Aluminum alloy |
| Gun Body Material | Cast Aluminum |
| Working Pressure | 4-6 Bar (60-115 PSI) |
| Air Consumption | 227-396 L/min (12-15 CFM) |
| Air Inlet | 1/4 inch (G1/4″) |
| Main Application | Wall Texture, Cement Mortar, Putty Spraying, Building Decoration |
| Key Feature | 3 pcs replaceable nozzles, large gravity hopper |
| Carton Dimension (6 pcs/ctn) | 74 × 50 × 35 cm |
Application Scenarios
● Interior & Exterior Wall Texture Coating
● Cement Mortar Spraying
● Wall Putty & Decorative Texture Finishing
● Ceiling Renovation & Decoration
● Construction Decoration Teams & Contractor Projects
Frequently Asked Questions
What is the FR300 spray gun used for?
FR300 is a construction grade hopper spray gun for wall texture, cement mortar, putty and decorative building coating projects.
What nozzle sizes come with FR300?
Comes with three interchangeable fluid nozzles: 4 mm, 6 mm and 8 mm for different material thickness.
What is the hopper capacity?
6000 ml gravity feed aluminum hopper.
What is the recommended working pressure?
Recommended working pressure: 4-6 Bar (60-115 PSI).
What air consumption does FR300 require?
Air consumption: 227-396 L/min (approx.12-15 CFM).
What materials suit different nozzles?
4 mm for fine putty; 6 mm for medium texture; 8 mm for coarse cement mortar material.
