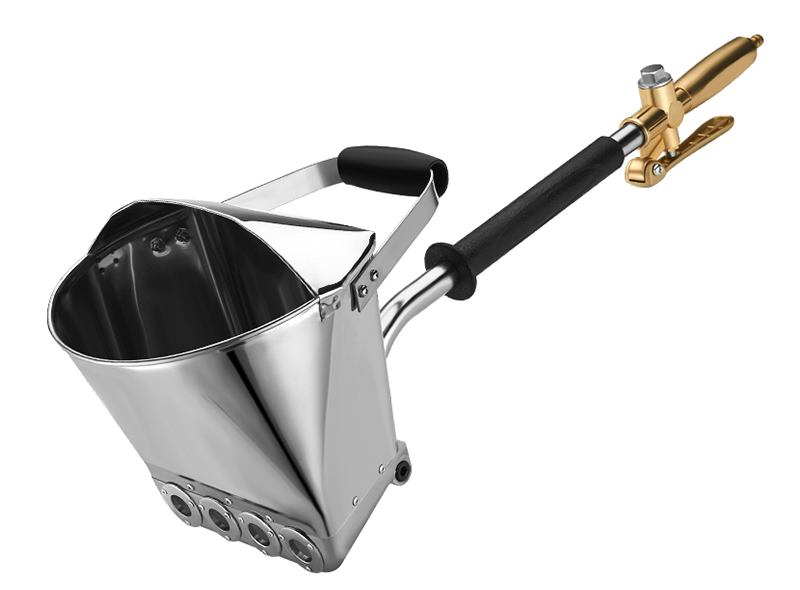

DW56 Pneumatic Cement Mortar Hopper Sprayer with Anti Spill Funnel Lid

DW 56 pneumatic mortar spraying unit is a practical air driven tool developed for on site construction finishing. Working paired with standard air compressors, it drastically cuts labour time compared to manual plastering and keeps operation straightforward for site workers. Distinguished from DW 55, this variant adds a dedicated funnel lid to effectively block material overflow during high speed spraying. Its tank adopts aluminum alloy material while major housing sections are built of stainless steel to deliver long lasting performance under harsh site conditions. Four replaceable spray orifices are included to match various coating materials and compressor outputs, well suited for conventional plaster rendering assignments. Compact body design allows easy access to narrow work spots; operators only need to squeeze the lever to trigger spraying function. The extended handle can be fully detached for convenient transport and space saving storage.

Funnel Type Anti Overflow Protective Lid

Custom fitted cover for the material hopper. It prevents mortar splashing and paint overflow while in operation, reducing material waste and keeping the job site tidy.

Alloy Stainless Mixed Material Build

Aluminum made reservoir combined with stainless steel outer shell. Good rust proof performance against damp cement, plaster and mortar compounds for prolonged site based usage.

Four Piece Interchangeable Orifice Accessories

Four different orifice attachments are provided, enabling flexible adaptation for multiple rendering substances and various air supply capacities, ideal for traditional plaster work.

Removable Extended Working Handle

Long reach handle features detachable construction. Disassemble it for compact carrying, or install it for reaching high wall surfaces and ceiling areas. Light weight overall structure lowers operator fatigue.

Simple Lever Driven Spraying Control

Trigger spraying output simply by pressing the hand lever. It can perform spraying tasks smoothly in cramped corners and confined working zones.

DW 56 air powered mortar hopper sprayer is a time saving finishing hardware widely used across building renovation projects. Compatible with air compressors, it handles plaster, cement mortar, ground mixed coating and various textured construction compounds. It applies to gypsum board composite treatment, textured paint spraying, ceiling texture creation, old building refurbishment and waterproof coating spraying. Each full set includes hopper body, anti spill funnel cover, detachable long handle and complete four piece orifice kit for instant field use.

Why Choose DW 56 Mortar Sprayer

Benefit	Description
Anti Overflow Funnel Lid	Special hopper cover stops material splashing and overflow during spraying, cutting down waste and mess on site
Alloy Stainless Durable Assembly	Aluminum hopper plus stainless steel housing, anti corrosive for frequent contact with wet cement based mixes
Four Swap Ready Orifice Set	Multiple orifice sizes fit diverse rendering media and different air compressor specifications
Detachable Long Reach Handle	Take apart handle for easy transportation; assemble for overhead ceiling and high wall spraying tasks
Effort Saving Lever Operation	One lever activation supports spraying even within narrow, restricted working corners
Wide Range Material Compatibility	Works for plaster, cement mortar, textured paint, gypsum compound and waterproof surface coatings

Item	Specification
Product Name	Pneumatic Cement Mortar Hopper Sprayer
Model	DW-56
Air Inlet Thread	G1/4
Nozzle Dimension	20 mm
Air Consumption	Approx. 8-14 CFM
Outer Packaging	Kraft Paper Carton
Hopper Capacity	3.5 L Aluminum Tank
Optimum Operating Pressure	4-8 Bar / 60-115 PSI
Gross Weight / Net Weight	13.7 kgs / 12.7 kgs
Carton Outer Dimension	61 × 48 × 38 cm
Standard Pack Quantity	6 pieces per export carton

● Gypsum board composite construction jobs

● Decorative textured paint spraying

● Ceiling ornamental texture finishing

● Old building renovation and refurbishment assignments

● On site waterproof coating spraying operations

● General interior and exterior plaster & mortar rendering

What construction jobs is DW 56 suitable for?

DW 56 air driven hopper sprayer serves building site rendering tasks. It processes plaster, cement mortar, textured paint, gypsum mixes and waterproof coating materials.

Does DW 56 come with a hopper cover?

Yes, it is equipped with a dedicated funnel shaped lid, which prevents coating overflow when performing spraying work.

What is the hopper capacity and material?

3.5 liter aluminum alloy hopper tank for holding mortar and plaster compounds.

What pressure setting should users adopt?

Suggested working pressure:4-8 Bar (60-115 PSI). Fine tune pressure value in accordance with material viscosity.

How many orifice pieces are supplied in original package?

Four interchangeable orifice attachments are included to suit different coating thickness grades.

Is the long handle removable?

Absolutely. The extended handle can be detached freely for convenient carrying and compact storage.
