How to Solve Partial Thin Coating Caused by Workpiece Dead-Angle Airflow Obstruction

How to Solve Partial Thin Coating Caused by Workpiece Dead-Angle Airflow Obstruction

Partial thin coating is often blamed on poor paint quality, but in many automotive refinishing jobs the real cause is airflow obstruction around the workpiece geometry. Corners, recesses, inner flanges, mirror housings, brackets, bumper openings, and roof reinforcement areas can create spray shadow zones. The atomized paint stream hits the outer edge, rebounds, and prevents enough material from reaching the deepest area.

Identify the spray shadow before coating

Before mixing material, inspect the part under strong side lighting and identify likely dead angles. Any area that cannot be seen directly from the operator position is also difficult for the spray pattern to reach. Mark these areas mentally and build a spray sequence around them. The best method is to coat difficult areas first, then blend the open surface afterward. If the technician sprays the large flat area first, the later correction pass may overload edges and still leave the recess thin.

Change gun angle instead of increasing material blindly

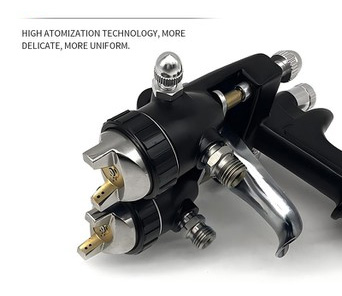

Do not solve a dead-angle problem by simply opening the fluid needle. More material usually increases overspray and edge build without improving penetration. With LVLP Spray Gun Rigid Frame equipment, keep the gun stable and rotate the wrist to maintain a direct path into the recessed zone. Use short controlled strokes, and keep the gun perpendicular to the target surface as much as the geometry allows.

Fan width should be narrowed when spraying into pockets or inner edges. A full fan wastes material against the surrounding surface and creates turbulent rebound. The Flexible Nozzle helps the painter adapt the pattern to restricted geometry, but each adjustment should be made before the coat starts, not during a wet pass. After the dead-angle area is covered, return to the planned fan setting for the visible surface.

Reduce airflow rebound

Air pressure that is too high can worsen the problem. The spray stream may bounce off the near edge and push atomized material away from the recess. For an air spray gun, reduce inlet pressure in small steps while watching whether the film inside the corner becomes wetter and more uniform. If the droplets become too coarse, increase pressure slightly or reduce fluid output instead.

Spray distance must also be controlled. Standing too far away causes dry mist to settle on the outer edge before enough material reaches the dead angle. Standing too close may flood the near edge. A practical approach is to use a slightly closer distance with reduced fan width and a slower, shorter pass. Follow with a normal pass across the surrounding surface to even out the appearance.

Use staged passes and verify film build

For complex parts, use an edge-first sequence. Coat inner corners, holes, brackets, and flanges with light controlled passes. Allow a short flash so the material anchors without running. Then spray the larger surface with normal overlap. If the coating system allows, use a wet film gauge on a hidden test area or compare gloss and color density under a lamp. Thin coating often shows as weak hiding, lighter color, low gloss, or rough texture.

When correction is needed, do not bury the area with one heavy pass. Use a narrow fan, controlled trigger, and the same LVLP Spray Gun Rigid Frame setup to add material only where film is missing. Keep the Flexible Nozzle locked so the repair pass remains consistent. Proper sequencing, lower rebound, and direct gun angle will solve most dead-angle thin coating problems without excessive rework.
