Correct spray gun pressure is essential for achieving proper atomization and consistent coating quality. If pressure is too high, excessive overspray occurs and paint particles become too fine. If pressure is too low, the coating may not atomize properly, resulting in uneven coverage.
Calibration begins by understanding the coating material being used. Different coatings-such as primers, lacquers, enamels, and clear coats-have unique viscosity levels and atomization requirements. Adjusting spray pressure ensures that the coating forms a smooth and even pattern.

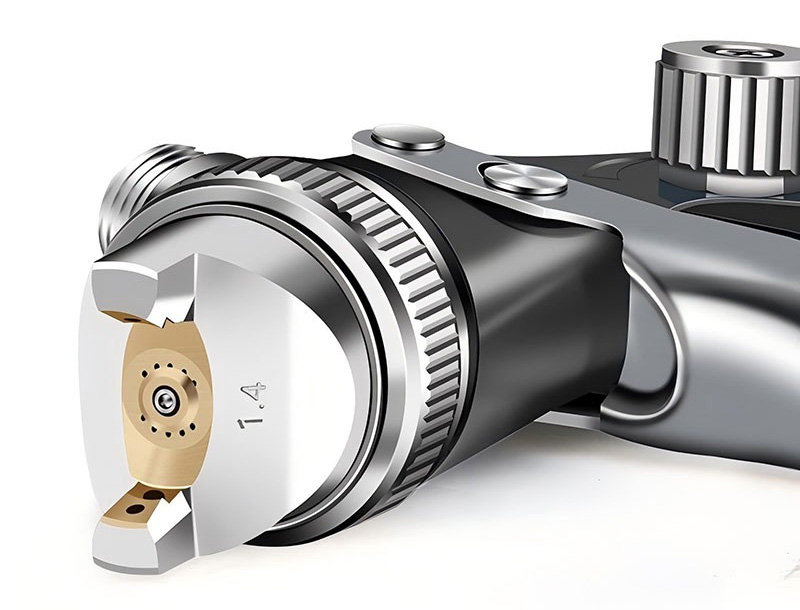

A Stable Performance Low-Cost LVLP spray gun is designed to operate effectively at lower pressure levels compared with traditional systems. LVLP technology allows painters to maintain strong atomization while reducing air consumption and overspray.
The first step in calibration is setting the compressor regulator according to the spray gun manufacturer's recommended range. Most LVLP guns operate between 15 and 30 PSI at the gun inlet, although exact values vary depending on the coating type.
Once the base pressure is set, painters should perform a spray pattern test on cardboard or scrap material. Observing the shape and consistency of the pattern helps determine whether adjustments are needed.
A Stable Performance Low-Cost LVLP spray gun typically produces a soft, controlled spray pattern that allows better coating control even with thicker materials.
If the spray pattern appears dry or grainy, the pressure may be too low or the paint may be too thick. Increasing pressure slightly or adjusting viscosity can help improve atomization.
If excessive mist or bounce-back occurs, the pressure may be too high. Reducing pressure will help keep more coating on the target surface and improve transfer efficiency.
Fluid flow adjustment should also be considered during calibration. Balancing air pressure with fluid flow ensures that the paint is delivered evenly without flooding the surface.
Spray distance and technique must remain consistent during calibration tests. Holding the gun at a steady distance ensures accurate evaluation of the spray pattern.
A properly tuned air spray gun should produce a symmetrical fan pattern with even paint distribution from top to bottom.
Environmental conditions can also influence pressure settings. Higher temperatures may require slightly lower pressure because paint flows more easily.
In summary, calibrating spray gun pressure requires understanding coating properties, testing spray patterns, and adjusting air and fluid settings accordingly.
With proper calibration and consistent spraying technique, painters can achieve smooth finishes, reduce material waste, and maintain reliable coating performance across a wide range of industrial and professional applications.
