Ultra-thin film spraying is widely used for protecting precision electronic components such as circuit boards, sensors, connectors, micro switches, and control modules. The goal is not simply to cover the surface, but to create a uniform, controlled, and protective coating layer without affecting electrical performance, heat dissipation, dimensional accuracy, or assembly tolerance.
To achieve ultra-thin film spraying, the first step is to choose the right coating material. For electronic protection, low-viscosity conformal coatings, nano coatings, insulation coatings, moisture-proof coatings, and anti-corrosion protective paints are commonly used. The coating must have stable flow properties and excellent leveling performance. If the viscosity is too high, the coating may form orange peel, uneven thickness, or edge buildup. If it is too low, it may cause sagging, overspray, or poor coverage.

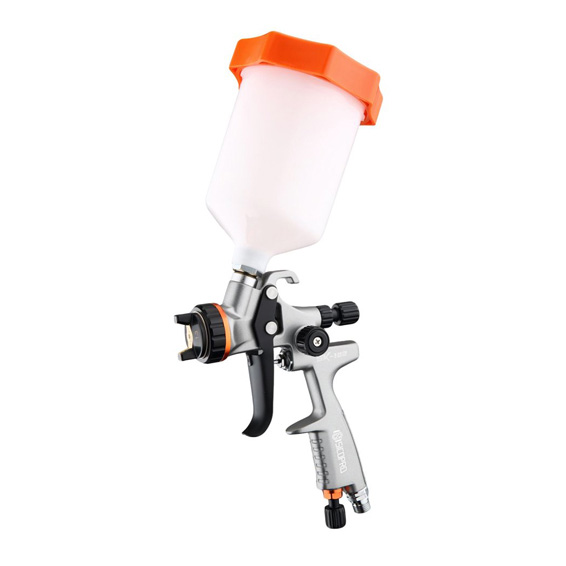

Spray gun selection is also critical. A precision spray gun with stable atomization, low overspray, and fine fluid control helps produce a thin and even film. A High Atomization Refinished Painting LVLP Spray Gun Professional Grade can be suitable for controlled coating work because LVLP technology uses lower air volume while still maintaining fine atomization. This helps reduce waste and gives the operator better control over small or delicate surfaces.
Spray distance should usually be kept short and consistent, commonly around 10–15 cm depending on the coating and nozzle size. The spray gun should move at a uniform speed, and the trigger should be pulled before entering the component area and released after passing the edge. This prevents heavy starting and ending spots. For very thin coating, multiple light passes are better than one heavy pass.
Nozzle size should be selected based on coating viscosity and required film thickness. Smaller nozzles are better for fine electronic parts, while larger nozzles may release too much material. Air pressure should be adjusted carefully. Too much pressure can create dry spray and excessive overspray, while too little pressure may cause coarse droplets and poor film uniformity.
Environmental control is another important factor. Dust, humidity, static electricity, and temperature changes can affect film quality. Components should be clean and dry before spraying. Oils, fingerprints, flux residue, and dust may cause coating defects or adhesion failure.
For consistent ultra-thin protection, operators should test spray patterns before production, measure dry film thickness, and record parameters such as viscosity, pressure, nozzle size, spray distance, and coating speed. A reliable air spray gun can help achieve repeatable results when paired with proper process control.
In precision electronics protection, the key is balance: enough coating to protect against moisture, oxidation, dust, and corrosion, but thin enough to preserve product performance. With a High Atomization Refinished Painting LVLP Spray Gun Professional Grade, proper coating preparation, and controlled spraying technique, manufacturers can achieve smooth, uniform, ultra-thin films for high-value electronic components.
